Consumer Electronics & Home Appliances

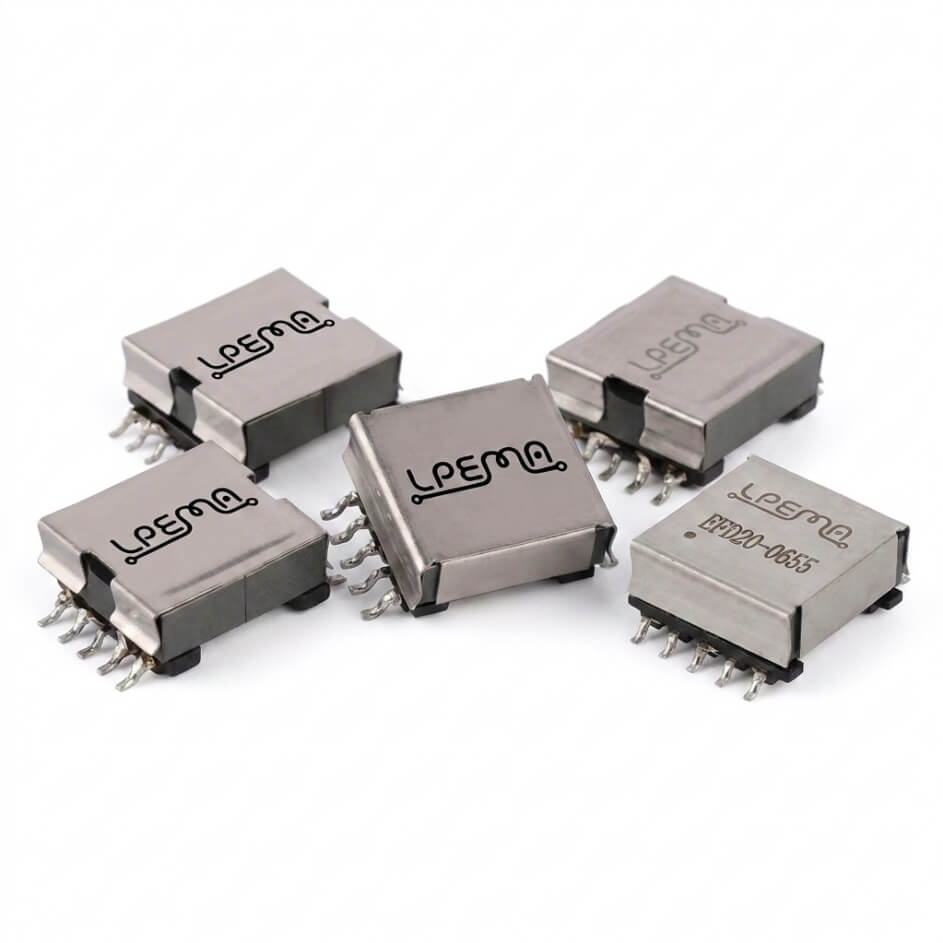

EFD (Economic Flat Device) cores are flat, low-profile ferrite shapes that minimise height, enabling slim adapters, TV power supplies, LED drivers and high-density SMPS. Their rectangular winding window supports higher power density and better thermal handling than round EP types at similar volume. Typical uses include AC-DC adapters, set-top boxes, lighting ballasts and compact industrial supplies. Selection should consider available board height, output power and EMC / standby-efficiency requirements.

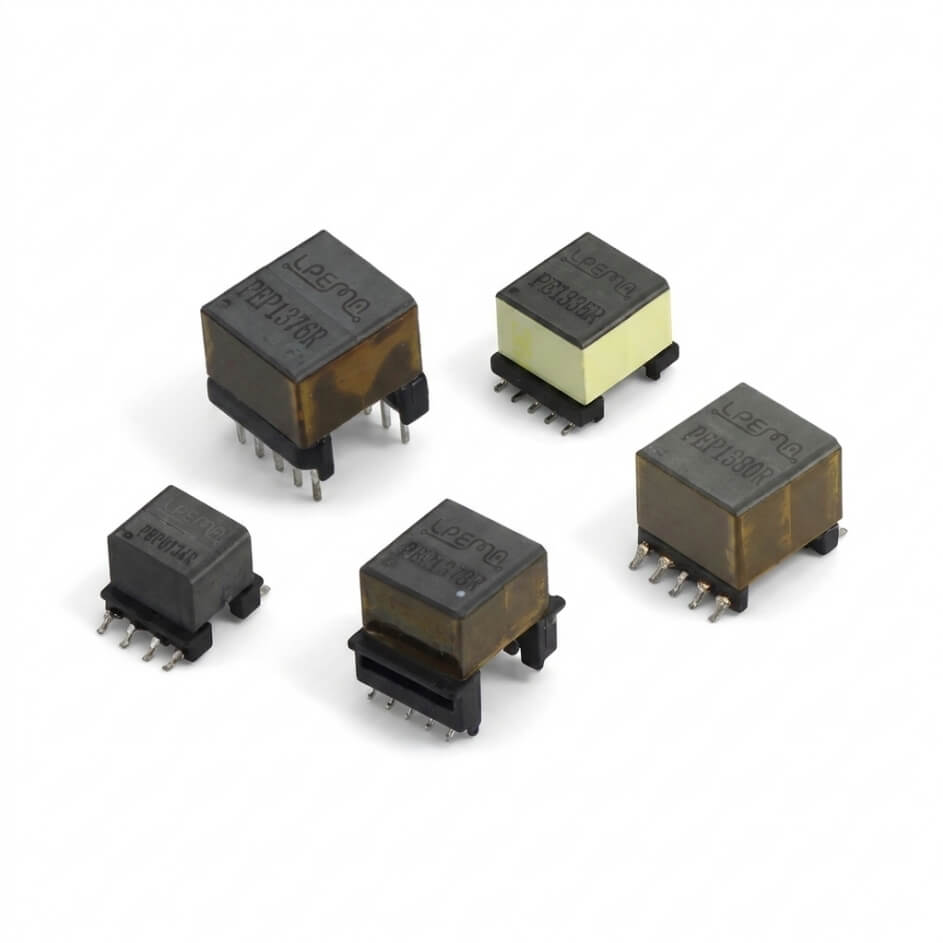

EP-core transformers use a small, round-center-leg ferrite bobbin that is easy to wind and inexpensive to automate, making them ideal for low- to medium-power isolated conversion. They are widely used in low-power SMPS, LAN / Ethernet pulse transformers, signal-isolation and small control-power supplies. Key strengths are stable inductance, good repeatability and a broad off-the-shelf model range for fast design-in. When selecting, verify primary-secondary isolation (typically 1500Vrms) and the turns ratio against your line / bus voltage.
